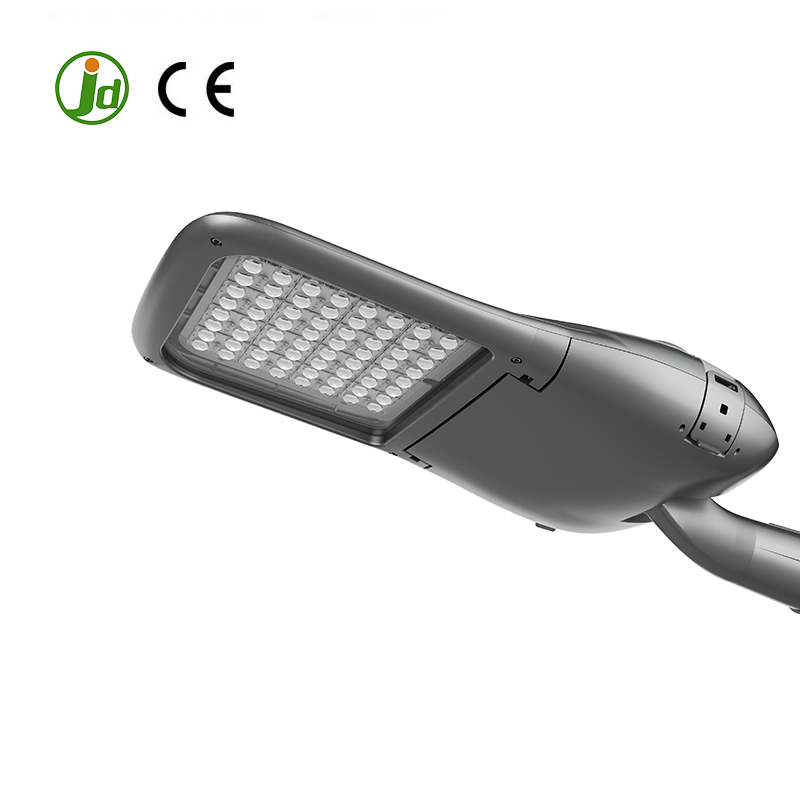

140lm/w IP67 Waterproof Outdoor LED Lights For Parking Lots

• High pressure die cast aluminum housing provides both lasting durability and superior thermal management to the luminaire.
• LUXEON 3030 2D LEDs deliver high lumen output and high efficacy with a minimum of 70% of initial intensity at 100,000 hours.
• High efficiency, dimmable Inventronics LED driver with high PF and low THD over a wide input voltage range for maximum efficiency.
• Precision designed PC lens optimizes application efficiency, providing homogenous light distribution and precise glare control.
• Corrosion resistant polyester powder coating provides excellent salt, humidity, fade resistance.
• 10kV surge suppression protection complies with IEEE/ANSI C62.41.2.
• Optional photocell integration provides daylight harvesting capability.
• Quick disconnects wiring harness for ease of field replacement and maintenance.
• M16 waterproof connectors ensure watertight integrity.
• Horizontal tenon or arm mount accepts 60 mm O.D. entry.
• IP66 ingress protection.
• IK10 impact protection.
• 5-year warranty.

LED street light features an integrated LED assembly in which 40, 56 or 80 LUXEON 3030 2D LEDs are mounted to a metal-core printed circuit board (MCPCB). These EMC (epoxy molding compound) molded QFN packages are reflow soldered to the MCPCB with high interconnect reliability for exceptional bond line uniformity and resistance to vibration, mechanical and thermal fatigue/creep. High solder joint integrity with improved creep resistance ensures long term thermal stability for high temperature operation. Excellent chip-level thermal management and high heat sinking capacity of the diet cast aluminum housing enable the high efficacy LEDs to maintain lumen output and chromaticity stability over a longer period of time. With high efficiency current regulation by an Inventronics LED driver,Series LED street lights achieve a consistent luminous efficacy at system level (up to 135 lm/W).

The LED light engine is equipped with IESNA Type II optics made of polycarbonate plastic resin. The precision molded TIR lens provides exceptional coverage and uniformity with high light transmission as well as minimal light trespass and light pollution. The heat and impact resistant, UV stabilized PC lens is fully sealed to the LED engine and provides ingress protection against water and dust for LEDs to maintain photometric performance of the LED engine over time.

LED street lights are available in models that support a full range of dimming options, including both stand-alone and network protocols. The JD-1065 Series is fully compatible with NEMA twist-lock photocells for dusk-to-dawn operation. Optional integration with a wireless control module enable every light fixture to be a wireless node for remote monitoring and control.

Specification :

* Suitable to diameter 76mm pole.
* High brightness LED chips 100lm/w
* Dusk to dawn Photocell function available
* 0-10V Dimmable/DALI/PMMA available
* IP66 waterproof rating
* Different type lens for choice
* Working environment in -40℃to 51℃
* CE/ROHS/LM79/LM80 for quality assurance and safety operation
* IES files are available
* 5 years warranty

· 70,000 hr rated LED lifetime

· Electrical isolation on opening

· Built-in internal surge protection

· Thermal overload protection

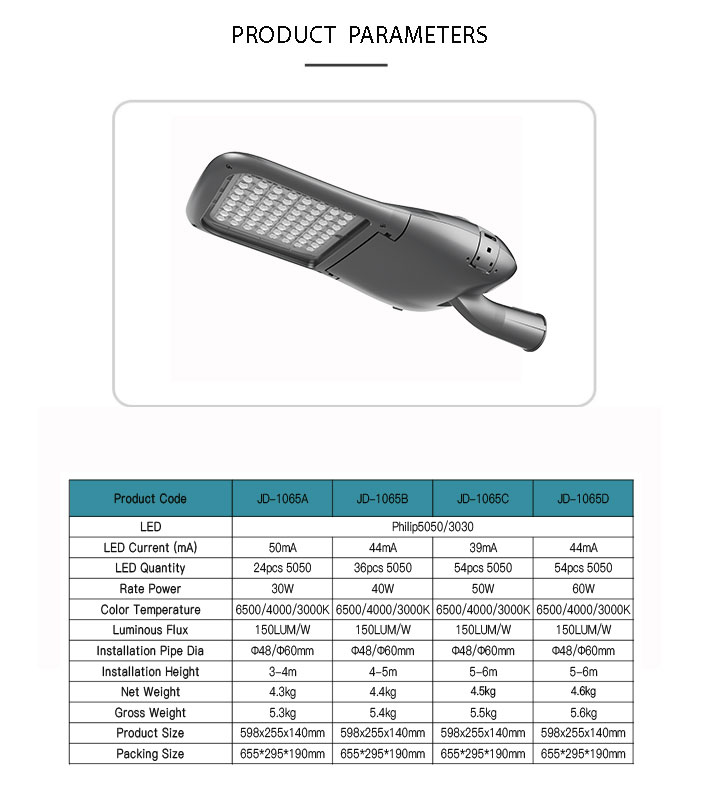

Product Details :

Product distribution curve :

JD has 25,000 m2 plant.150 workers.

JD dedicate itself to different kinds of luminaires: LED Street Light, LED Flood Light, LED Garden Light, Light Pole. Company equiped own Lab. Include: IES Testing,IP Testing, IK Testing, Work Temperature Testing. Equipment include Chip Mounter, Welding Machine, 1000T ,700T and 300T Die-casting Machines, Powder Coating Line. Company provides innovative, high quality and environment friendly luminaires to worldwide. Application include industrial, commercial, residential, hotel projects and municipal projects.

JD has experienced engineers offer strong technical support,bring creativity,insight and knowledge to provide the best and brightest lighting solutions. Company follows ISO 9001-2015, ISO14001, ISO18001 management system, attention to detail of every process include: design, engineering, tooling, manufacture, finishing, assembly, packing and shipping. HIGH QUALITY is embodied in every management and workers mind. Products have CE, ROHS, GS, Enec, CB certificate. Welcome to OEM, ODM.
