20Watt IP65 Waterproof Li-battery Integrated All In One Solar LED Street Lights​

We provide professional, systemic and high-tech lighting solutions for all city routes, spaces and architecture. We are aware of the specific practical, architectural and cultural aspects of every space and propose a wide range of optics and photometric distribution systems. We light the whole city, from the outskirts to the centre, from zero to thirty meters, and every product is specifically devised for the different context in which it is used. We cut consumption and pollution with the high efficiency of our optics and with dynamic light flows that allow areas of shadow to be preserved where light is not needed and guarantee pedestrians and drivers a safe, accessible night-time.

Solar panel parameters:DC18V/36W
Solar panels:Monocrystalline silicon

Monocrystalline Silicon High Efficiency
Long Lasting

Certificate :

ISO9001:2015

ISO14001:2015

ISO18001:2007

CE EMC LVD IK08

IEC 60598-2-3: Luminaires – Particular requirements - Luminaires for road and street lighting.

IEC 60529 :Degrees of protection provided by enclosures (IP 66) .

IEC 62262 :Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK08) .

1. 2000 cycle IFR Lithium iron phosphate battery,10 years spen life.
2. Support more than 10 rainy days with the best technology ALS2.0
3. Seour SSC led chip, 170W/lumen, lighting angle 140o

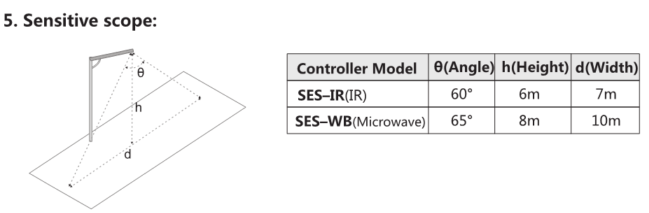

4. 3 Lighting Mode for choosing, motion sensor for energy saving.
5. Detachable design of battery pack and led chip,easy to maintenance.
6. All in one design with patent,die cast Aluminum case,Waterproof IP65.
7. Turn on at dusk and tun off at dawn automatically.

Specification :

Product Details :

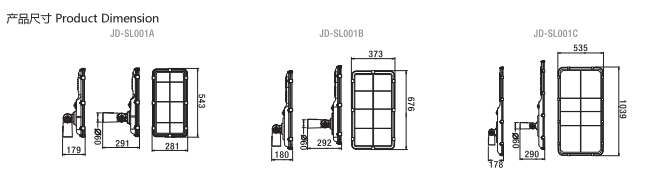

Product dimension:

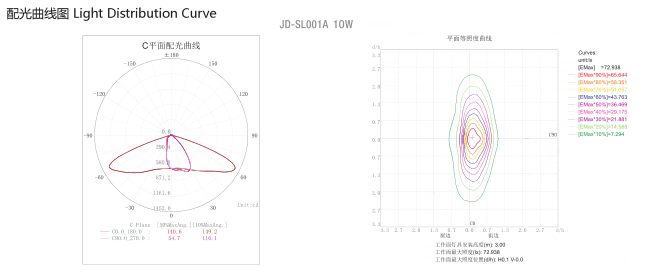

Product distribution curve :

​

JD has 25,000 m2 plant.150 workers.

JD dedicate itself to different kinds of luminaires: LED Street Light, LED Flood Light, LED Garden Light, Light Pole. Company equiped own Lab. Include: IES Testing,IP Testing, IK Testing, Work Temperature Testing. Equipment include Chip Mounter, Welding Machine, 1000T ,700T and 300T Die-casting Machines, Powder Coating Line. Company provides innovative, high quality and environment friendly luminaires to worldwide. Application include industrial, commercial, residential, hotel projects and municipal projects.

JD has experienced engineers offer strong technical support,bring creativity,insight and knowledge to provide the best and brightest lighting solutions. Company follows ISO 9001-2015, ISO14001, ISO18001 management system, attention to detail of every process include: design, engineering, tooling, manufacture, finishing, assembly, packing and shipping. HIGH QUALITY is embodied in every management and workers mind. Products have CE, ROHS, GS, Enec, CB certificate. Welcome to OEM, ODM.
