IP66 high quality SMD 120W 150W 200W waterproof led street lights

Materials
Housing:ADC12 die-cast aluminum
Cover:Toughened cambered/flat glass
Screws:304 stainless screws

Electrial (upon request)
Class I or Class Ⅱ(upon request)
Input voltage:90-305VAC/50-60Hz,170-3055VAC/50-60Hz
10KV/20KV SPD(upon request)
Power automatically switch off when opening

Dimming(upon request)
Dali
1-10V
PWM
Astro DIM for autonomous dimming with five independent levels
Smart control management system

Certificate :
ISO9001:2015
ISO14001:2015
ISO18001:2007
ISO9227

CE CB ROHS EMC LVD LM79-08 TM-21-11

1. Super bright: >130 lm/w.
2. Long working life: >50000hours.
3. Energy saving: save 75% energy than the traditional street light.
4. Enviromental Protection:No IR or UV.
5. Excellent heat Dissipation, No Flashing, No Noise.
6. Long warranty time: 5 Years Guarantee.

Specification :

Product Details :

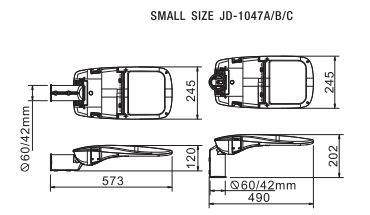

Product dimension:

Product distribution curve :






​

JD has 25,000 m2 plant.150 workers.

JD dedicate itself to different kinds of luminaires: LED Street Light, LED Flood Light, LED Garden Light, Light Pole. Company equiped own Lab. Include: IES Testing,IP Testing, IK Testing, Work Temperature Testing. Equipment include Chip Mounter, Welding Machine, 1000T ,700T and 300T Die-casting Machines, Powder Coating Line. Company provides innovative, high quality and environment friendly luminaires to worldwide. Application include industrial, commercial, residential, hotel projects and municipal projects.

JD has experienced engineers offer strong technical support,bring creativity,insight and knowledge to provide the best and brightest lighting solutions. Company follows ISO 9001-2015, ISO14001, ISO18001 management system, attention to detail of every process include: design, engineering, tooling, manufacture, finishing, assembly, packing and shipping. HIGH QUALITY is embodied in every management and workers mind. Products have CE, ROHS, GS, Enec, CB certificate. Welcome to OEM, ODM.
