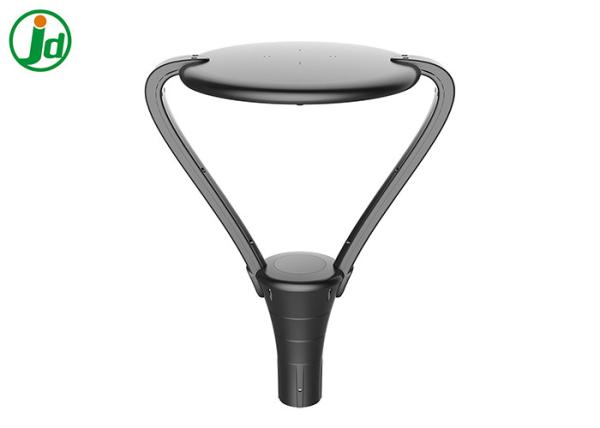

Aluminum waterproof led garden lights yard pathway lights with ip66

Materials

Housing:ADC12 die-cast aluminum

Cover:Toughened cambered/flat glass
Screws:304 stainless screws

Electrial (upon request)

Class I or Class Ⅱ(upon request)

Input voltage:90-305VAC/50-60Hz,170-3055VAC/50-60Hz

10KV/20KV SPD(upon request)

Power automatically switch off when opening

• High brightness LEDs, CRI RA>70, 90 to 110lm/w & 2700-6500K selectable
• Power factor >0.95, total harmonic distortion <10%
• AC90 to 277V wide application potted dirver with multi protections of short circuit, open circuit, zero load, over load, electron magnetic inteference
• Dual stage built-in surge protector 6KV and 10KV
• Aesthetical architecturelly design and make up of corrosion free high pressure die cast aluminum with well design of thermal managment system
• IP66 ingress protection to both optical and control gear compartment
• Tool free mounting with level gradienter, NEMA interface reserved
• Long maintenace free life, 50,000 hours for whole luminare

Specification :

Product Details :

Product dimension:

Product distribution curve :

​

JD has 25,000 m2 plant.150 workers.

JD dedicate itself to different kinds of luminaires: LED Street Light, LED Flood Light, LED Garden Light, Light Pole. Company equiped own Lab. Include: IES Testing,IP Testing, IK Testing, Work Temperature Testing. Equipment include Chip Mounter, Welding Machine, 1000T ,700T and 300T Die-casting Machines, Powder Coating Line. Company provides innovative, high quality and environment friendly luminaires to worldwide. Application include industrial, commercial, residential, hotel projects and municipal projects.

JD has experienced engineers offer strong technical support,bring creativity,insight and knowledge to provide the best and brightest lighting solutions. Company follows ISO 9001-2015, ISO14001, ISO18001 management system, attention to detail of every process include: design, engineering, tooling, manufacture, finishing, assembly, packing and shipping. HIGH QUALITY is embodied in every management and workers mind. Products have CE, ROHS, GS, Enec, CB certificate. Welcome to OEM, ODM.
